The Xfinity modem/router lights, i.e., green, blue, white, red, orange, or yellow, might make you wonder about the current state of your internet or the device itself. Depending on the activity of a status light, the xFi gateway might be booting, processing, or even trying to establish a connection.

Knowing about each light on the Xfinity modem or router is important. Most colors on the Xfinity WiFi box have a set format for blinking or steady. For instance, the flashing white light reveals internet issues. While solid white signifies the device is working as intended.

So, without further delay, let’s get going!

Xfinity Modem Lights: Explained

Note that xFi modem lights aren’t the only ones, as you need to look at the voice modem lights (which are different from xFi devices). Keeping these aspects and challenges in mind, I have finally put a list of Xfinity gateway lights to help you identify each, its idea activity, and the quick fixes to perform when found in an unideal condition.

1. White Light

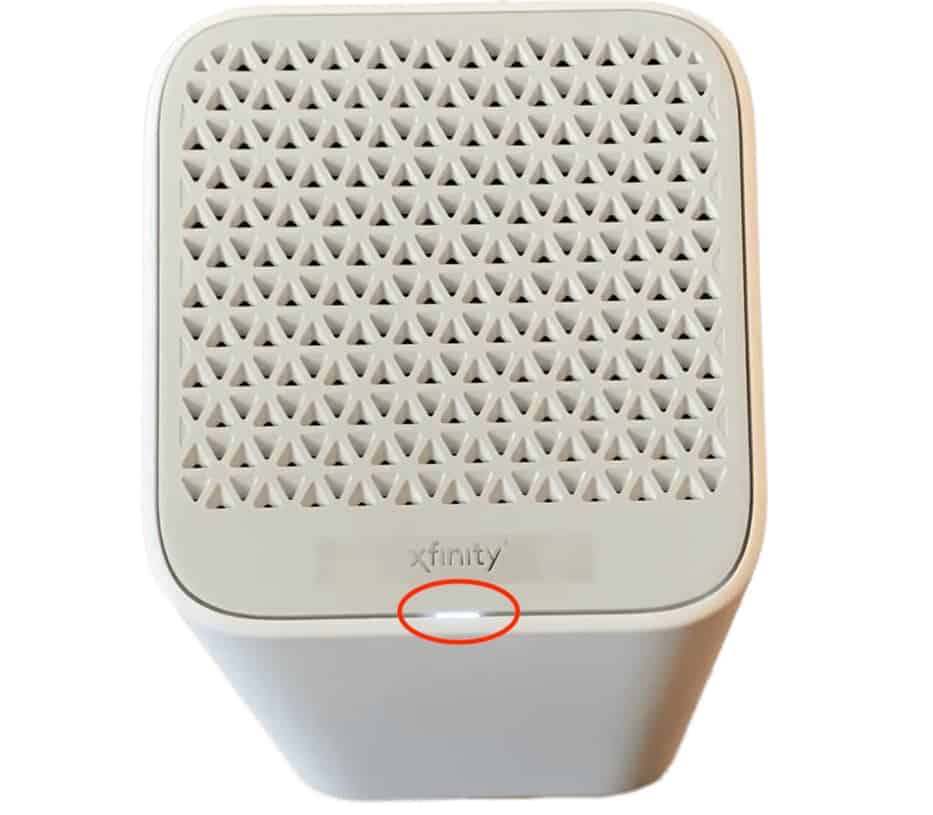

Xfinity Modem White Light

Meaning: The white light on an Xfinity modem can hold steady or blink (with or without the purple tint) before or after activation. This identifier tells about the status of the connection, regardless of the plan you have subscribed to.

The Xfinity modem blinking white is all about the power and quality of the signal that the gateway receives at any given moment.

Ideal light activity: White steady light, post modem activation, is the modem’s steady state. This shows that the modem is in a perfect state and ready to start working.

The Problem, Possible Cause, and Solution: If the Xfinity white light blinks, the modem is expected to be inactive. If the modem blinks during activation, it seems like a classic case of limited operational scope.

As for solutions, you might need to check that no loose cables are in play. Also, check for firmware upgrades to keep the white light from blinking.

2. Red Light

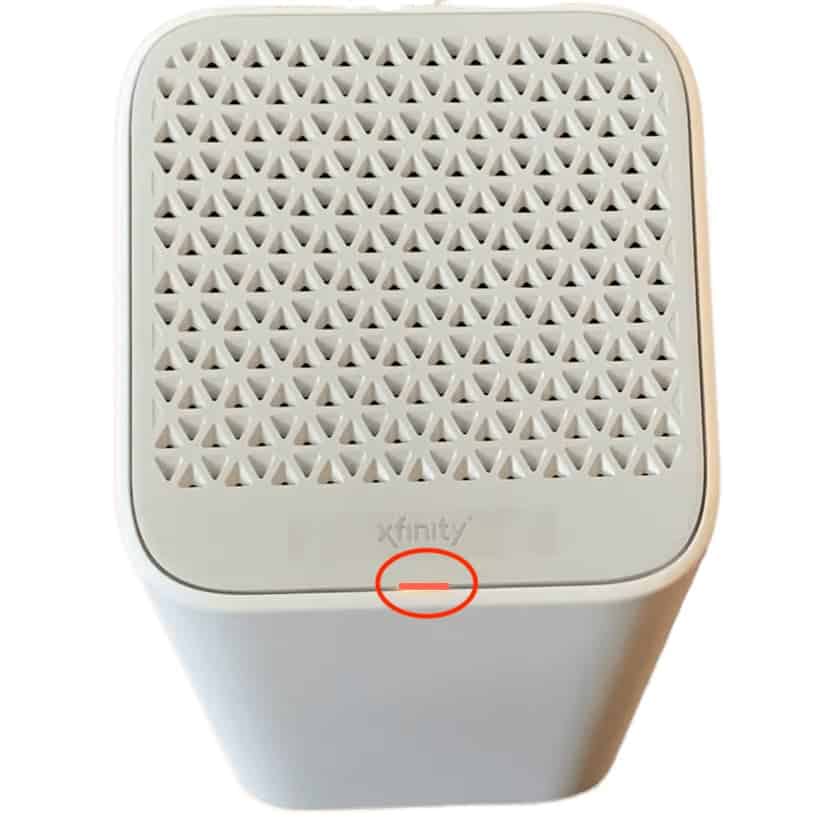

Xfinity Modem Red Light

Meaning: Regardless of its state, the red light on the Xfinity modem or router shows that the device is finding it difficult to connect to the internet.

Ideal Light Activity: There is no ideal activity for the red light except that it shouldn’t appear.

The Problem, Possible Cause, and Solution: If you see the Xfinity modem red light holding steady, try and check with the ISP regarding the health of the internet connection. Also, check for the power outage at the ISP’s end.

3. Orange/Yellow Light

Xfinity Modem Orange Light

Meaning: Xfinity gateway blinking orange or yellow means it is likely getting an upgrade or searching for downstream signal.

Ideal light activity: There is no ideal activity here, but if the orange light keeps blinking, there might be some issue with the connection quality, or the software inside the modem is taking time to set up the premise for a connection.

The Problem, Possible Cause, and Solution: If the orange/yellow light keeps blinking, consider this as the modem firmware getting updated. In standard cases, it takes around 15 minutes for the same to persist, and after that, you can expect the white and then the green light to show up.

However, if the firmware isn’t the issue, it is advisable to check the splitter connection and the damages, if any. Poor internet quality can also be an issue; to solve that, you might have to connect with the ISP. There might be some issue with the device itself, in which case it is advisable to replace or discard the same, depending on the warranty status.

As for the fix, here are the possible steps to follow:

  • Restart
  • Software upgrade
  • Change the splitter, if damaged

4. Blue Light

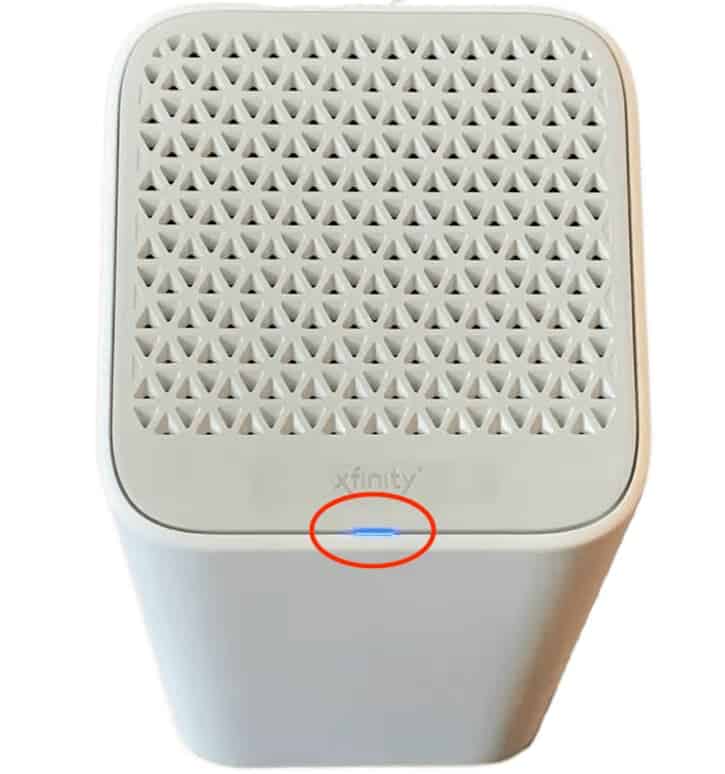

Xfinity Modem Blue Light

Meaning: Xfinity modem blinking blue means the device is trying to connect to another wireless device via WPS (Wi-Fi Protected Setup).

Ideal Light Activity: Blue light blinking is the ideal activity for this indicator. And as it blinks, rest assured that the Xfi device is searching for other possible connections.

The Problem, Possible Cause, and Solution: If the blue light keeps blinking for more than a minute or so, you might need to check whether the other device has turned on wireless capabilities.

5. Green Light

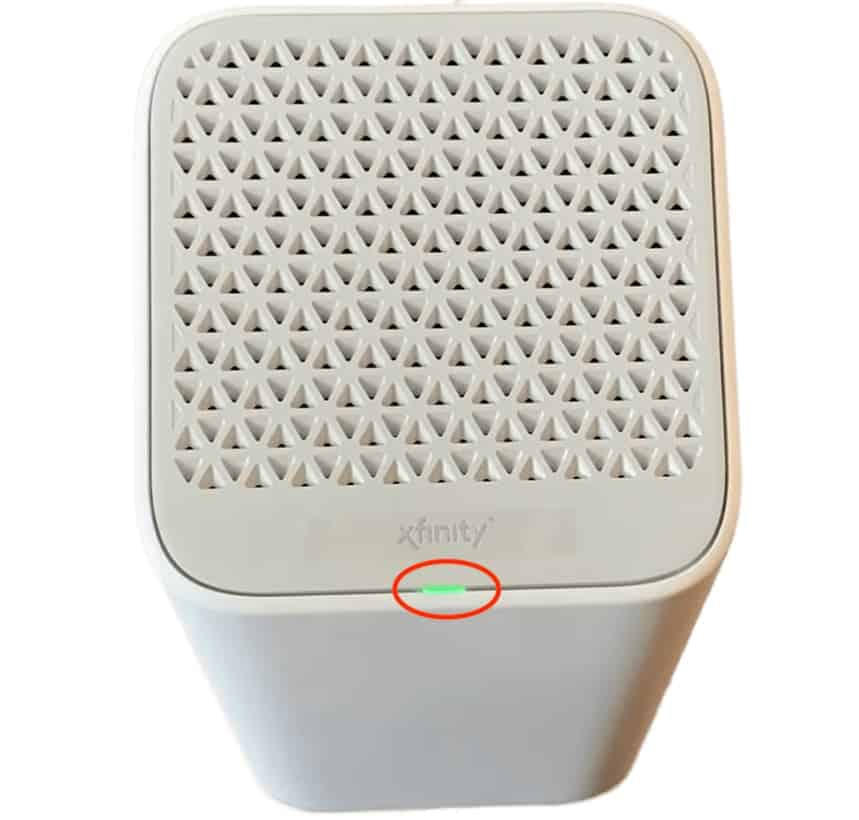

Xfinity Modem Green Light

Meaning: Green light is primarily good news for an xFi device. If it holds steady, it indicates that the internet connection is stable and holding strong. However, if it blinks for more than 15 seconds, then it means that your device is connected to Xfinity’s network, but is unable to retrieve the downstream signal.

Ideal Light Activity: Ideal activity for this indicator light is to hold steady.

The Problem, Possible Cause, and Solution: If the green light flickers, note that the modem or the gateway device is trying to stabilize the connection. In most cases, it takes close to 15 minutes to steady itself. However, if the green light keeps blinking for more than 15 minutes, it is better to connect with the ISP and get the same checked.

6. Xfinity Modem No Lights

Meaning: The modem isn’t operational or is currently turned off.

Ideal Light Activity: N/A

The Problem, Possible Cause, and Solution: No power or load shedding.

Xfinity Voice Modem/Router Lights: Explained

Here is how the Xfinity WiFi lights play along if you are working with a voice-supported modem or gateway.

1. Solid Light

Meaning (Depending on the type of Modem): Every other light — be it power, internet, or even DSL/Cable indicator flash red, green, orange, or white, depending on the scenarios mentioned above. However, the telephone LEDs denote the status of the voice connections and whether Xfinity’s bundle plan is working as desired or not.

Ideal Light Activity: Regardless of the color, telephone LEDs should hold steady in an ideal scenario.

The Problem, Possible Cause, and Solution: N/A

2. Flashing Light

Meaning: If the modem’s telephone port lights flash, ensure that the connected telephone/s is/are off-hook and not connected properly.

Ideal Light Activity: No ideal state as a flashing light always means trouble.

The Problem, Possible Cause, and Solution: Check the RJ11 wire that connects the telephone to the modem. Check for damages or plug the cable tightly if it isn’t already. If the lights are flashing slower than usual, it is better to connect with the ISP’s customer service team to resolve the same.

3. No light

Meaning: No power or no voice plan active

Ideal Light Activity: N/A

The Problem, Possible Cause, and Solution: Your voice plan might not be active yet, or there might be some issue with the modem’s firmware. The best solution is to reset the device by following specific instructions.

Frequently Asked Questions

What do lights on my Xfinity modem mean?

Lights on your Xfinity modem tell a lot about the device’s health, the status of the wireless devices around (in case you have a gateway), the status of the internet connection, and even the firmware status.

What lights should blink on my Xfinity modem?

Blinking light isn’t always good news on an Xfinity modem. However, if orange/yellow or green blinks, you might not be in trouble as they take around 10 to 15 minutes to return to a steady state and then turn green.

How to fix Xfinity modem lights blinking but no internet?

If all the lights on the Comcast Xfinity modem are in an ideal state and there is no internet, it is better to check for the firmware details and then connect with the ISP if the problems persist.

What to do when all color lights blink on the Xfinity gateway?

All color lights blinking means that the modem is resetting itself. While this can be done manually, some modems with internal issues can reset themselves. In that case, you are better off connecting with the Xfinity customer team.

Xfinity modem (gateway or voice) has a set number of light colors . And while some of you might ignore them in the first place, tells a lot about the internet connection in the first place.

Knowing what each status light means and how it acts makes it easier to determine the exact nature of the problem when there is no internet supply. Learning about the lights helps you find the problem early and fix it at the earliest, period!
